Weight capacity: 600 lbs. |
|||
|---|---|---|---|
|

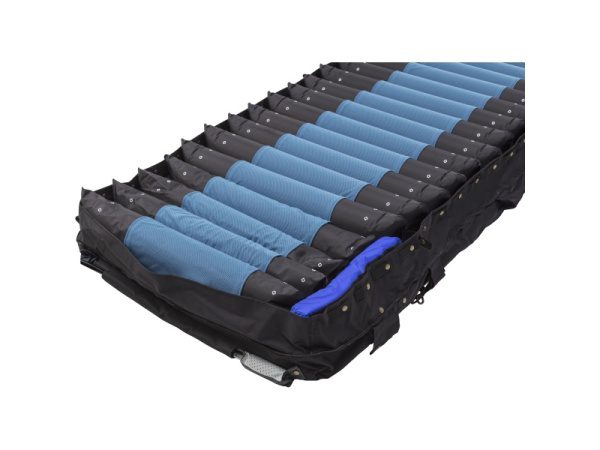

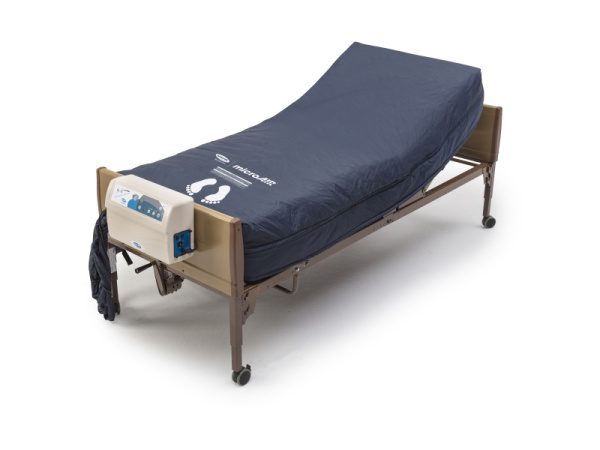

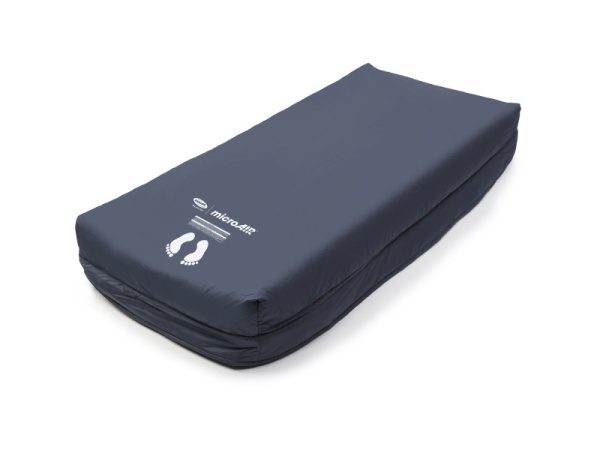

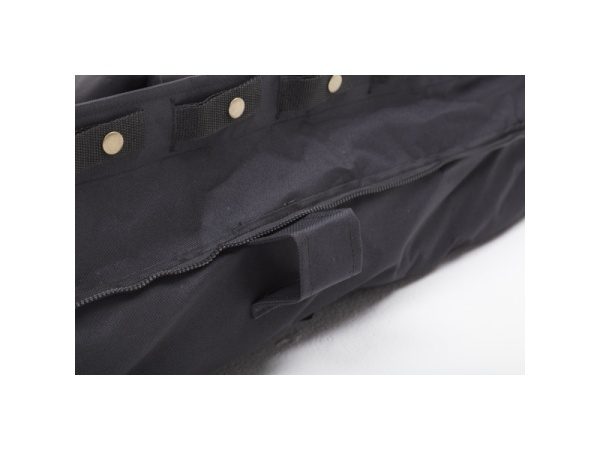

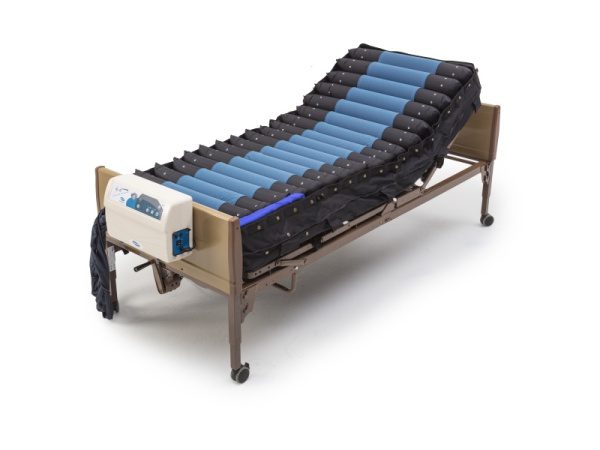

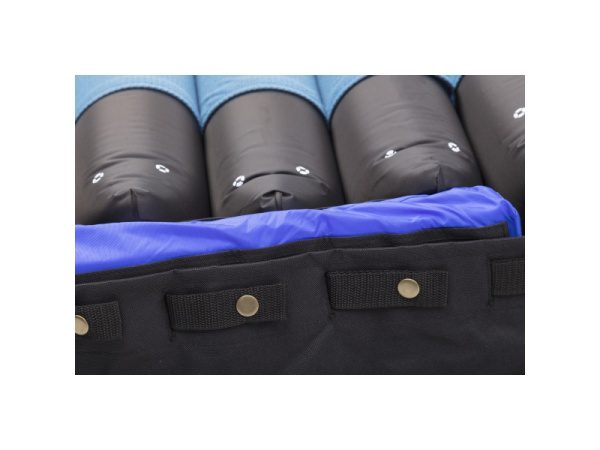

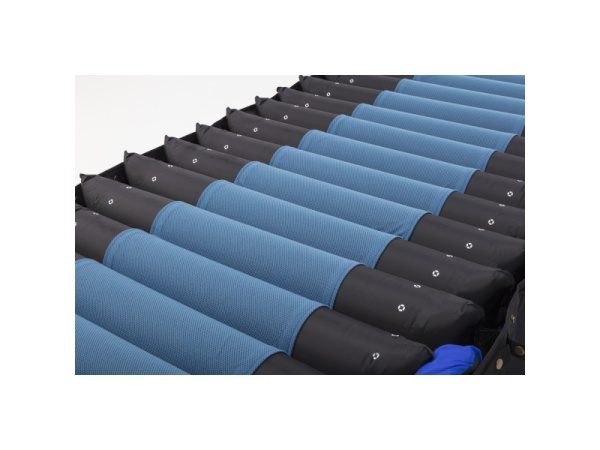

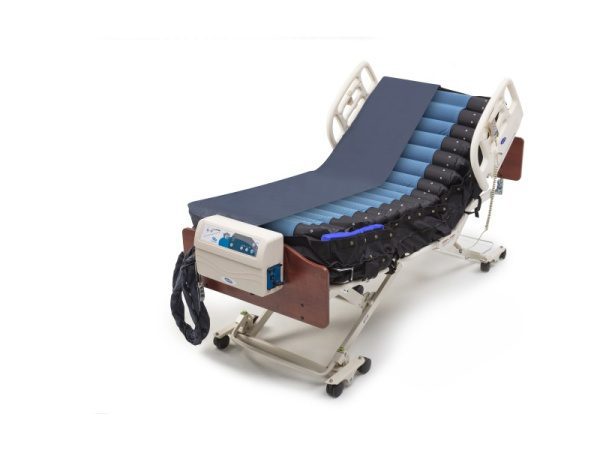

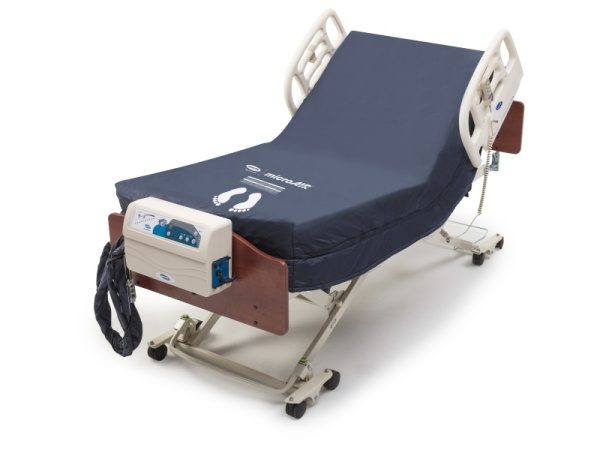

3-in-1 Alternating Pressure combined with Pulsation and True Low Air is Loss ideal for situations where maceration and moisture management are an issue. True Low Air Loss Therapy provides extra comfort for moisture and temperature control. Customizable cycle times to meet patient’s varying needs. Foam base helps prevent bottoming out in the event of a power failure. External exhaust keeps the mattress surface cooler and the pump quieter. Nylon non-slip base cover helps reduce shear and friction during bed articulation. |
|||

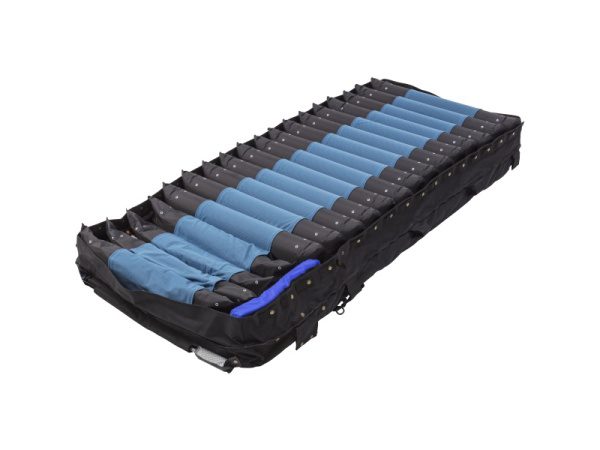

| Overall Mattress Properties | |||
| Dimensions (L × W × H) | 80″ × 36″ × 10″ | Mattress weight | 41 lbs. |

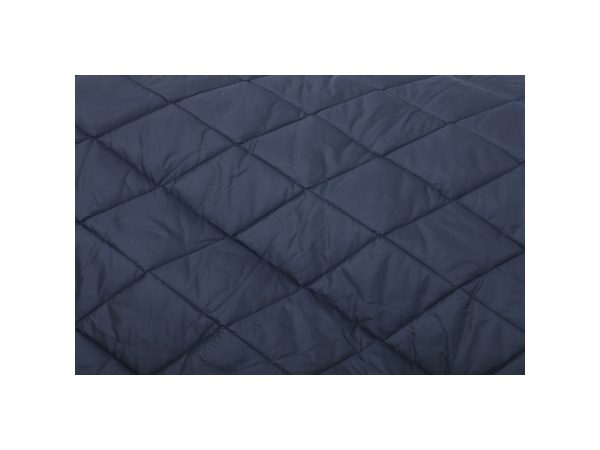

| Base material | Woven polyster w/ PVC | Cover material | Nylon woven w/ PU coating |

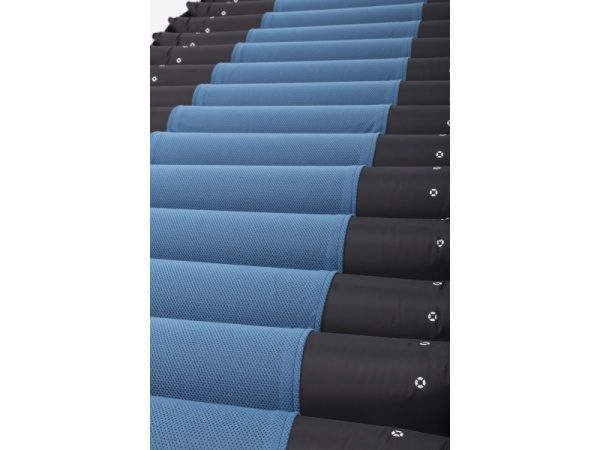

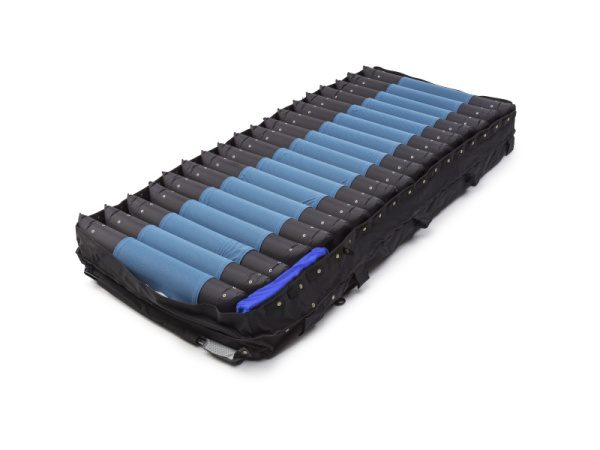

| Cell material | Nylon with PU backing | Mattress height | 10″ |
| Specific Mattress Properties | |||
| Model | Weight Capacity | Bed Width | Bed Dimensions (L × W × H) |
| MA800 | 600 lbs. | 36″ | 80″ × 36″ × 10″ |
| MA800B42 | 1,000 lbs. | 42″ | 80″ × 42″ × 10″ |
| MA800B4284 | 1,000 lbs. | 42″ | 84″ × 42″ × 10″ |
| MA800B48 | 1,000 lbs. | 48″ | 80″ × 48″ × 10″ |

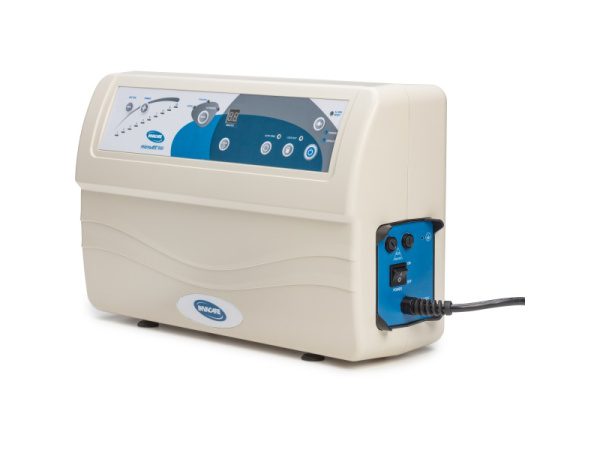

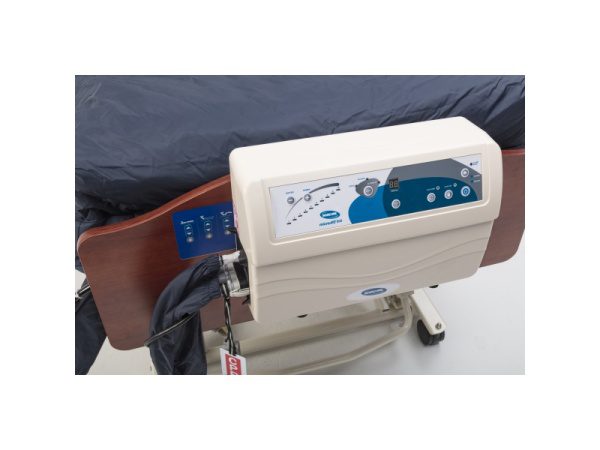

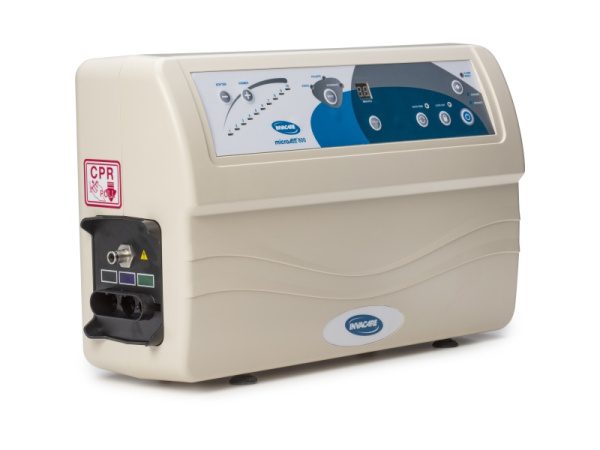

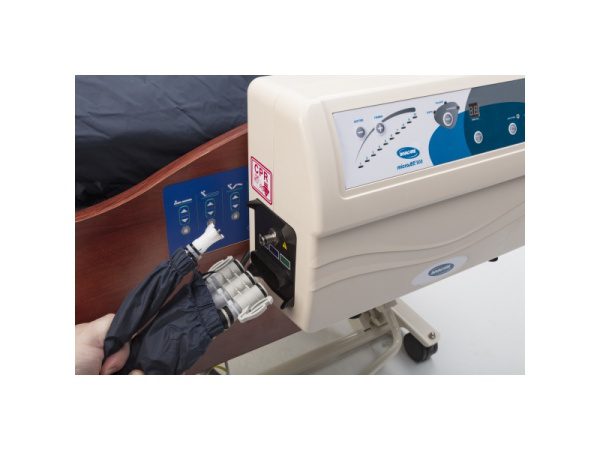

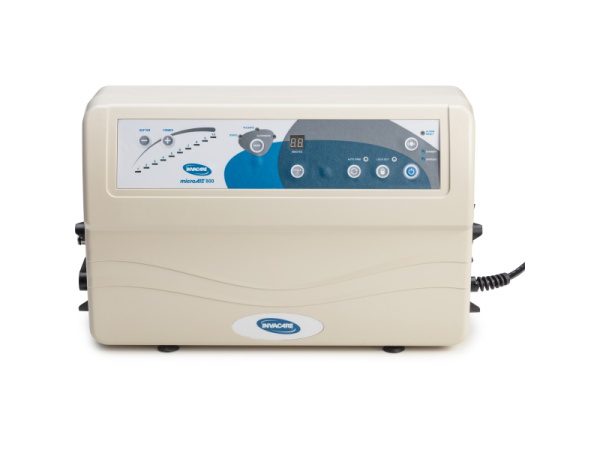

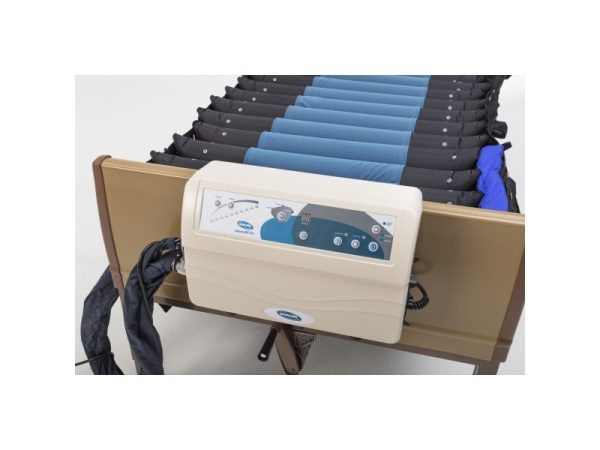

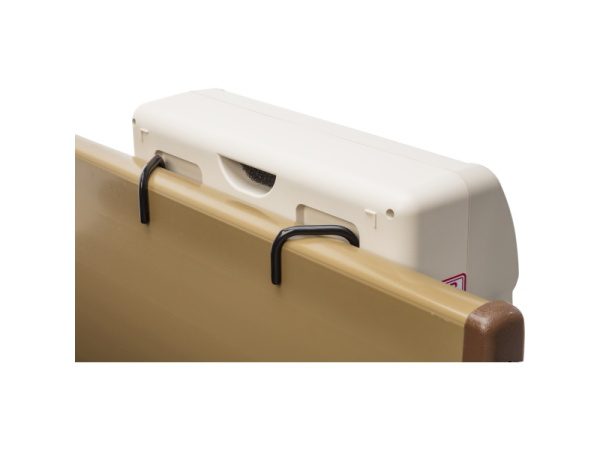

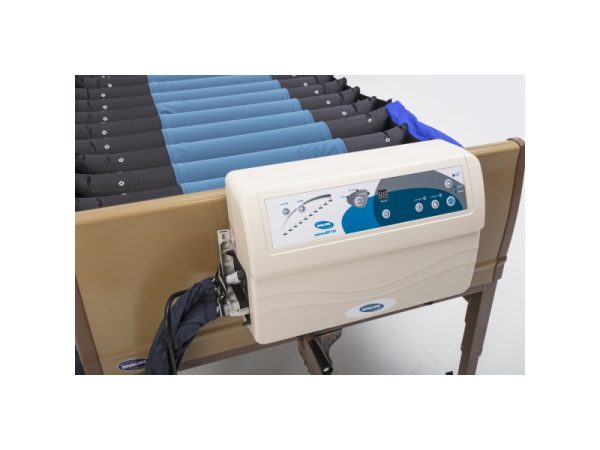

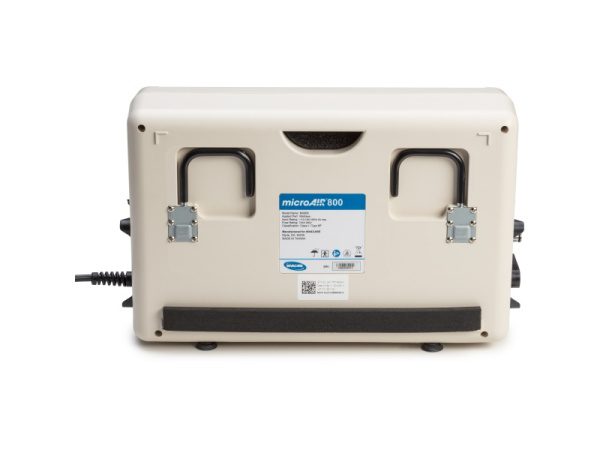

| Control Unit Properties | |||
| Dimensions (L × W × H) | 17.7″ × 6.8″ × 10.8″ | Max operating pressure | ≥ 35 mmHg |
| Pump airflow | 1275 LPM | Pump cycle time | 3 – 95 Minutes |
| Mode of operation | Continuous | Power cable | 15 ft., AC Powered |

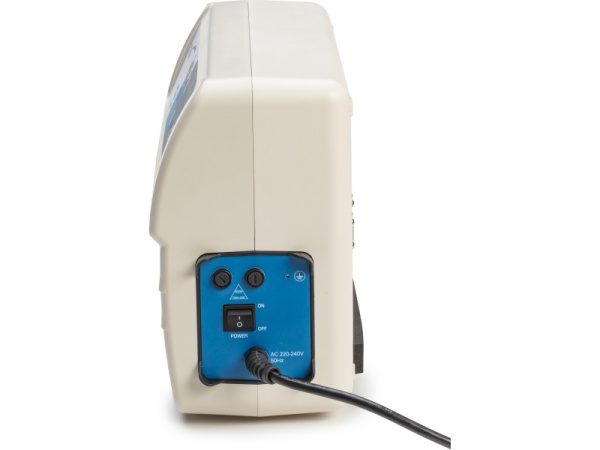

| Pump power | 110 – 120 V, 5 Amp, 60 Hz | Pump weight | 13.2 lbs. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
