Weight capacity: 600 lbs. |
|||
|---|---|---|---|
|

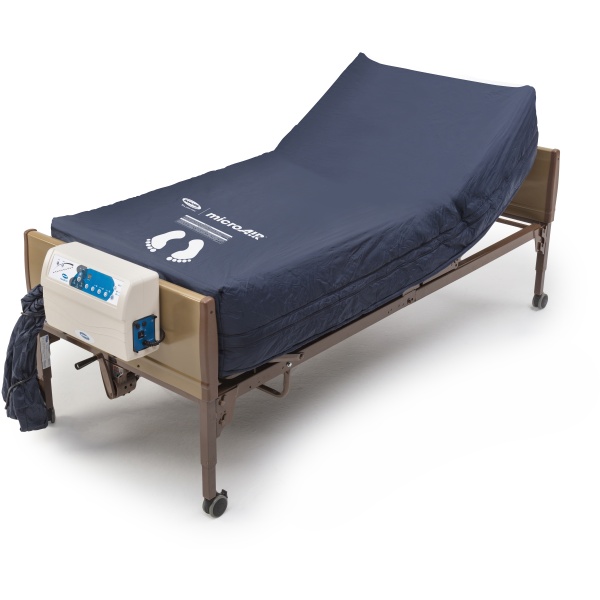

Alternating Lateral Rotation and True Low Air Loss help provide Pressure Relief and Moisture Management, with built-in side bolsters for added safety. True Low Air Loss Therapy provides extra comfort for moisture and temperature control. Features continuous 20°s; and 40°s; lateral rotation therapy, which can help lower the risk of infection, pneumonia and other pulmonary complications in at-risk patients. Customizable cycle times to meet patient’s varying needs. Highly Vapor permeable and oversized pliable quilted nylon top cover provides low shear, friction and moisture protection. Cable management system keeps cords away from the ground to help prevent trip hazards. |
|||
| Overall Mattress Properties | |||
| Dimensions (L × W × H) | 80″ × 36″ × 10″ | Mattress weight | 41 lbs. |
| Base material | Woven polyster w/ PVC | Cover material | Nylon woven w/ PU coating |
| Cell material | Nylon with PU backing | Mattress height | 10″ |
| Specific Mattress Properties | |||
| Model | Weight Capacity | Bed Width | Bed Dimensions (L × W × H) |
| MA900 | 600 lbs. | 36″ | 80″ × 36″ × 10″ |
| MA900B42 | 1,000 lbs. | 42″ | 80″ × 42″ × 10″ |
| MA900B48 | 1,000 lbs. | 48″ | 80″ × 48″ × 10″ |

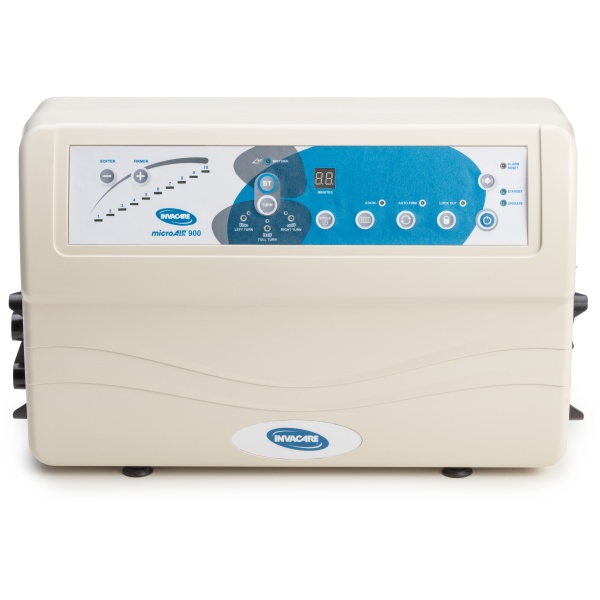

| Control Unit Properties | |||
| Dimensions (L × W × H) | 17.7″ × 6.8″ × 10.8″ | Max operating pressure | ≥ 30 mmHg |
| Pump airflow | 1275 LPM | Pump cycle time | 3 – 95 Minutes |
| Mode of operation | Continuous | Power cable | 15 ft., AC Powered |
| Pump power | 110 – 120 V, 5 Amp, 60 Hz | Pump weight | 13.2 lbs. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
