Name: Jazzy Carbon HD
SKU: JAZZY CARBON HD
Availability: InStock

• Top speed of up to 3.7 mph
• Battery range of up to 12.4 miles
• Front and rear suspension
• Durable carbon fiber frame
• 20 Ah lithium battery (standard)
• Storage pocket on back of seat
• Unit weighs 32.2 lbs. without the battery
• Padded seat back with removable cushion

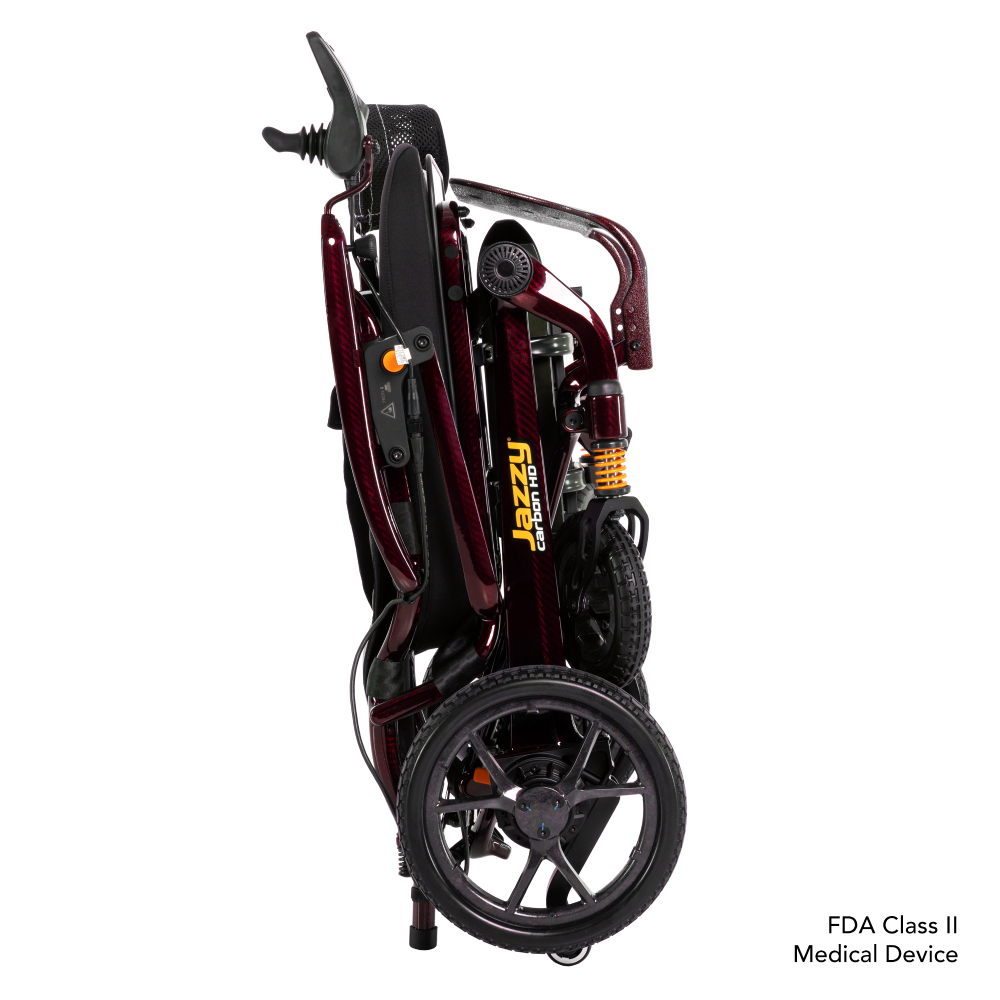

• Easy fold design that locks into the folded position
• Flip up lightweight carbon fiber arms
• Quick disconnect LCD joystick with digital display, USB-C port & puddle light
• Mesh cup holder, cushion, and adjustable lap belt (standard)

Pride Mobility Jazzy Carbon HD
Weight capacity: 400 lbs. Model: JAZZY CARBON HD Warranty: 5 Years (Frame), 1 Year Limited (Electronics, Drive Motors, Battery)		Product Brochure / Manual Product Video

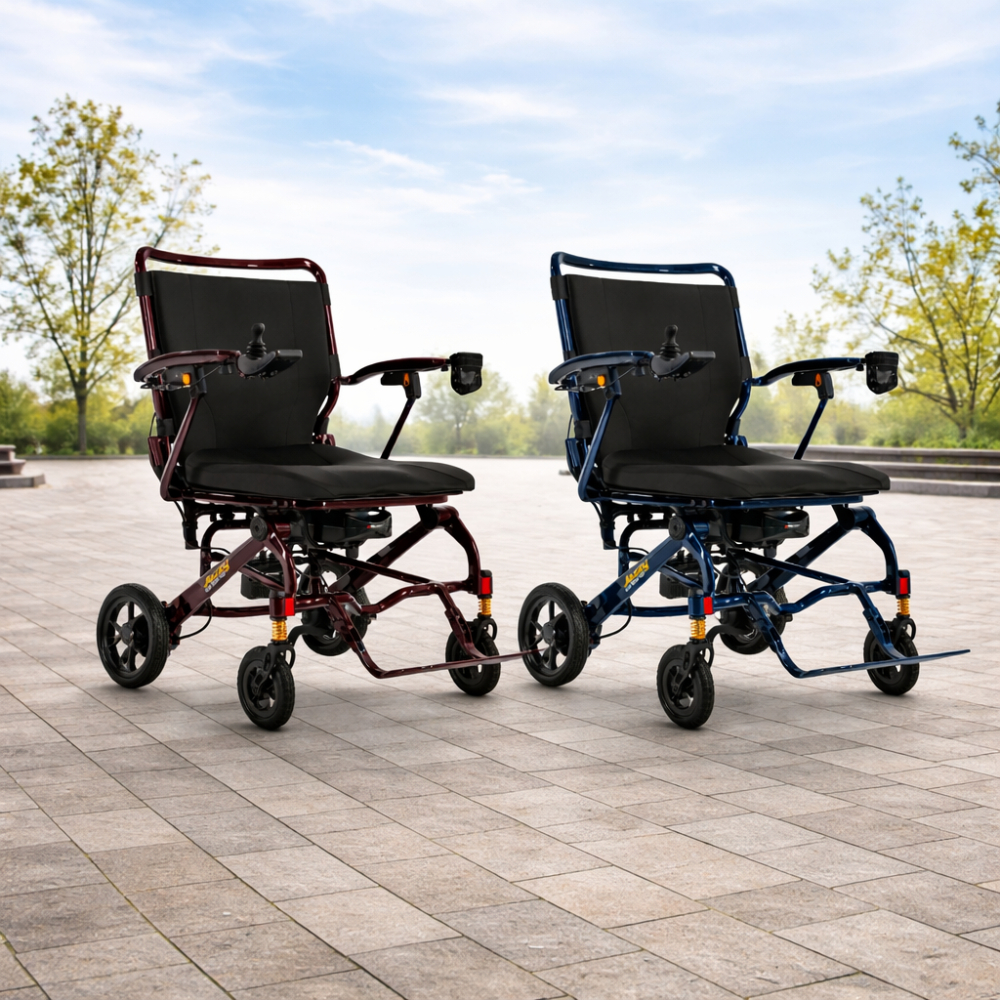

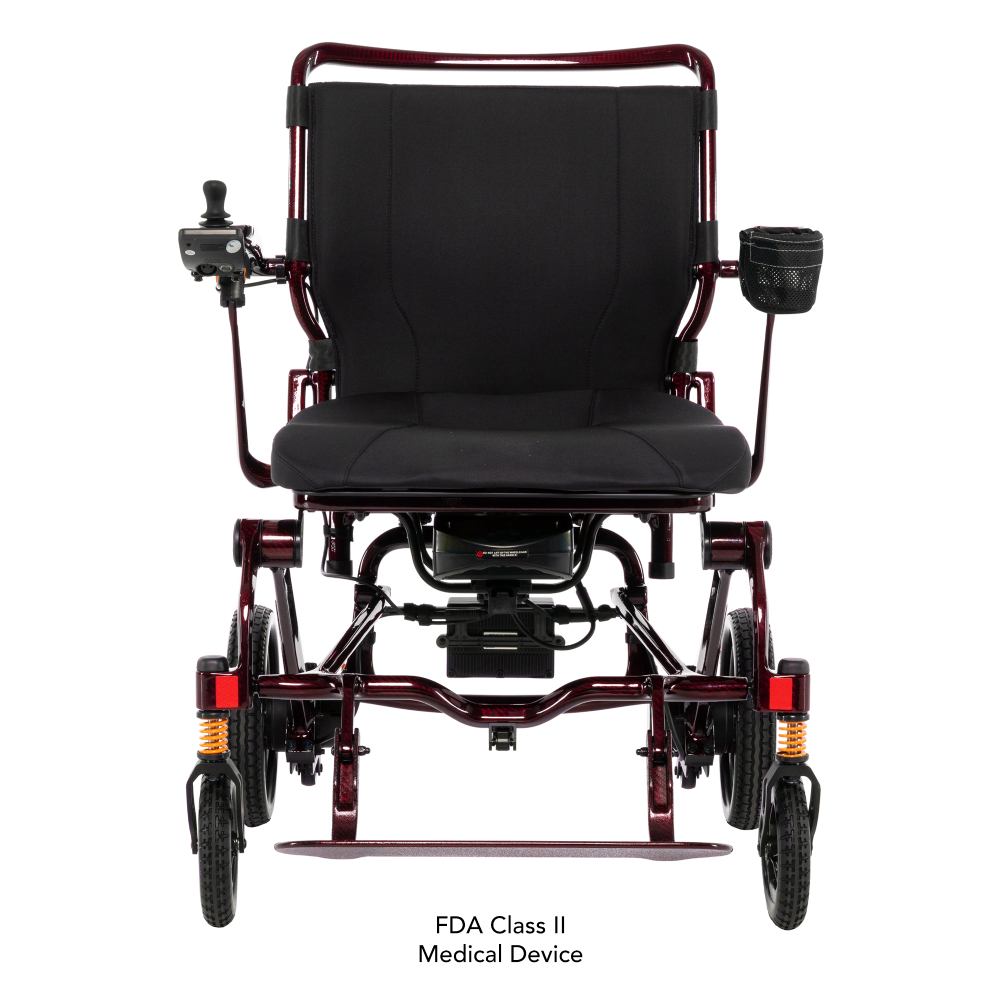

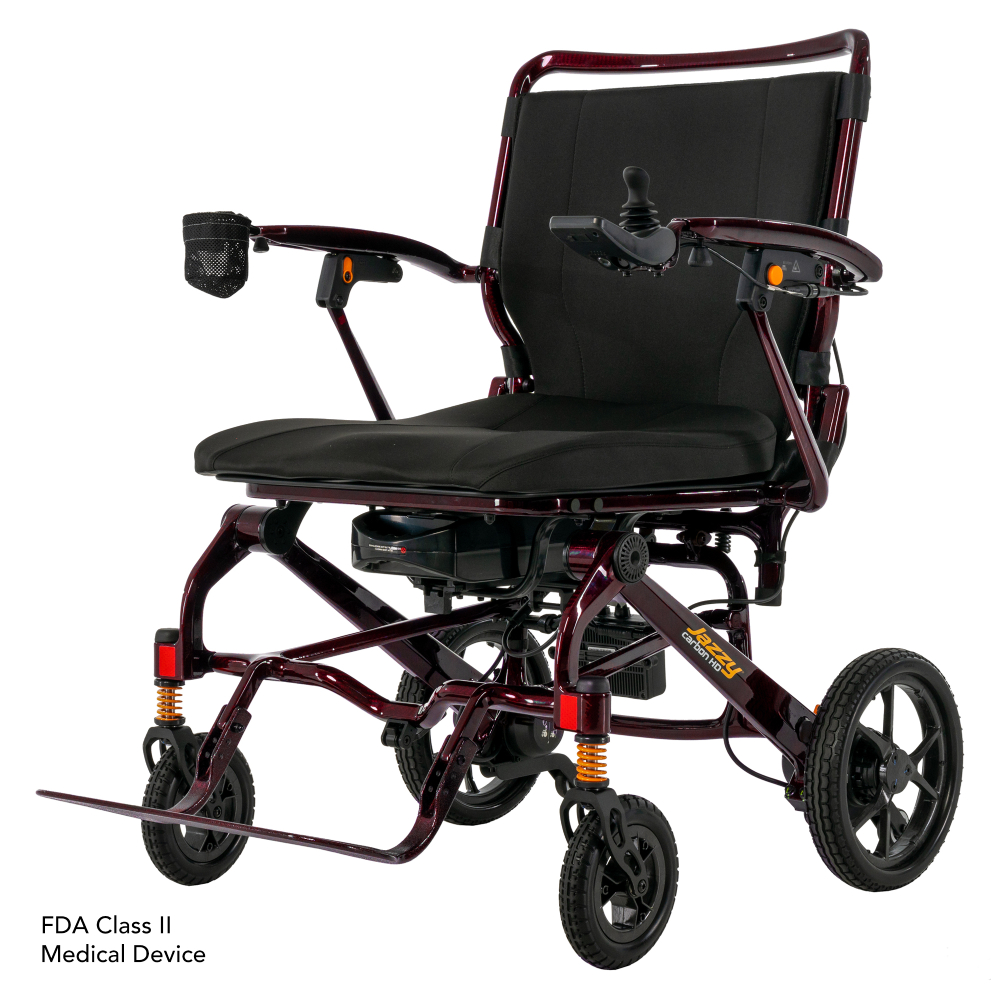

The Jazzy Carbon HD weighs 32.2 lbs. without the battery and boasts a 400 lb. weight capacity without compromising on the quality or performance. It quickly folds and is easy to pick up thanks to a durable, lightweight carbon fiber frame. The roomy 20 x 20” seat, adjustable padded seat back, removable cushion, and extra-wide adjustable foot platform are designed for your comfort. It also has front and rear suspension, providing a smooth ride over varied terrain. You will get all of that with the Jazzy Carbon HD! Travel worry-free and experience the best in lightweight portability! FDA Class II Medical Device*
Product Properties
Weight capacity	400 lbs.	Ground clearance	1″
Turning radius	36.4″	Overall dimensions (L × W)	36.81″ × 26.4″
Drive wheels	10.6″ solid	Color	Black Cherry and Night Sky
Total weight w/o batteries	32.2 lbs.	Suspension	Full Front and Rear Suspension
Standard seating	Seat sling with removable cushion	Battery charger	2 amp
Braking system	Regenerative and electromechanical	Per-charge ranges	Up to 12.4 miles
Battery	20AH lithium-ion	Battery weight	7.5 lbs.
Drive system	24V/250W brushless motors	Maximum speed	Up to 3.7 mph
Front Wheels	6.5″
