• 600 lb. weight capacity.
• 6 point spreader bar allows for multiple sling options, safer patient handling and a wider range of transfers.

• Capable of lifting from the floor.

• Ergonomically designed foot pedal offers hands free opening of base which adjusts and locks easily for added security.

• Manual emergency lowering provides safe response to power loss.

• Dual rear locking casters.

• 4″ rear casters with brake & 3″ dual front casters.

• Clip free sling hookups improve safety and reduce downtime.

• Modular design allows easy parts replacement.

• Advanced electronics with auxiliary up/down lift controls.

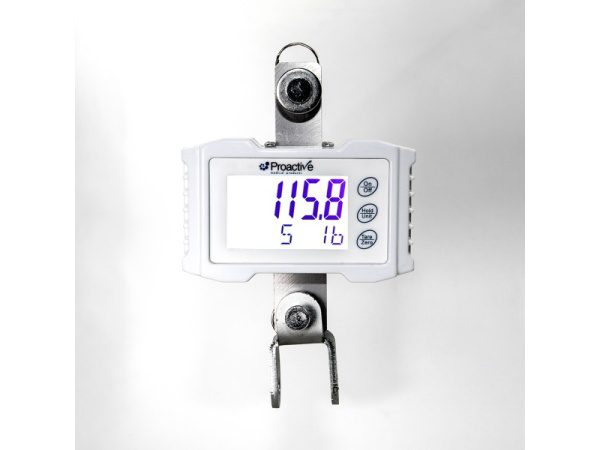

• Optional digital scale.

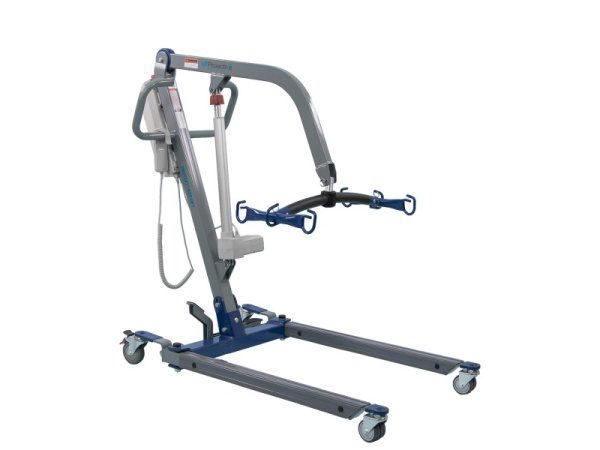

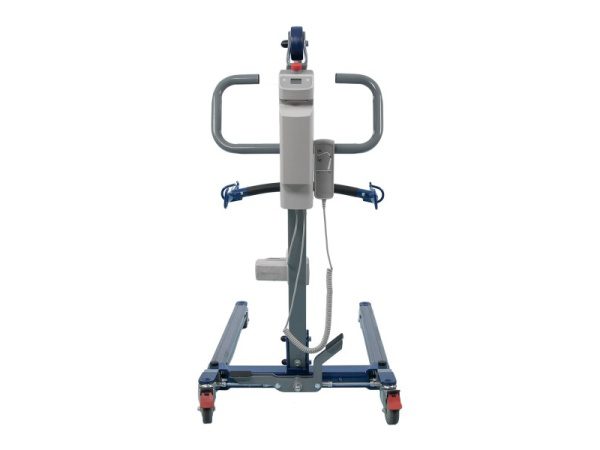

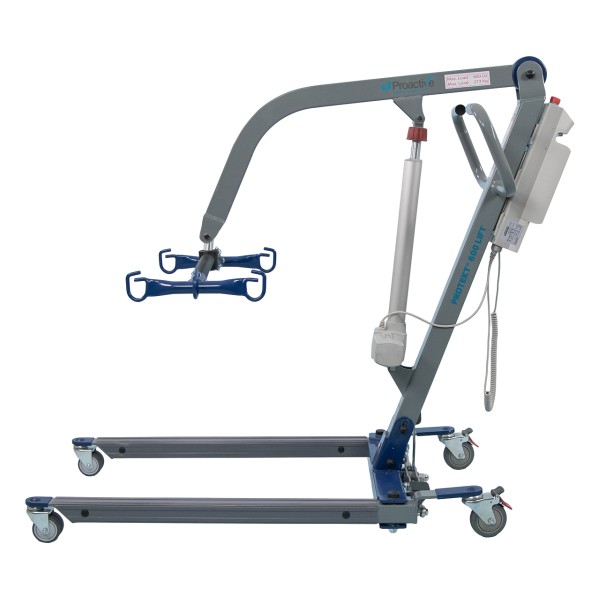

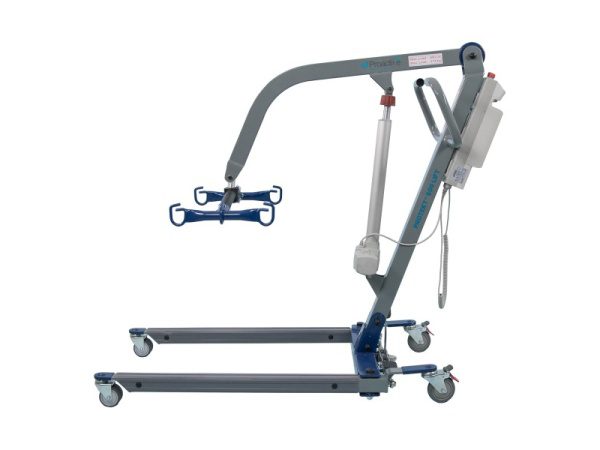

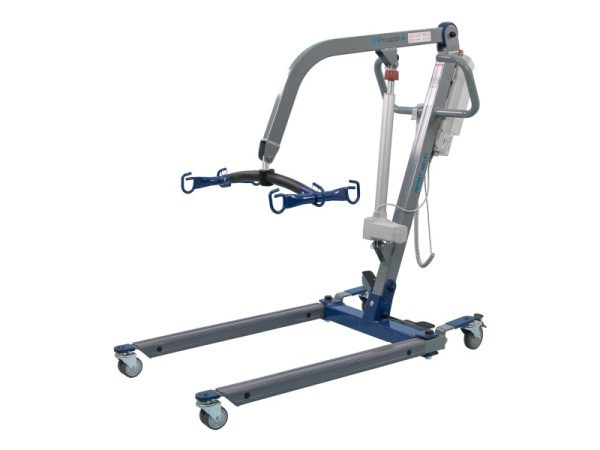

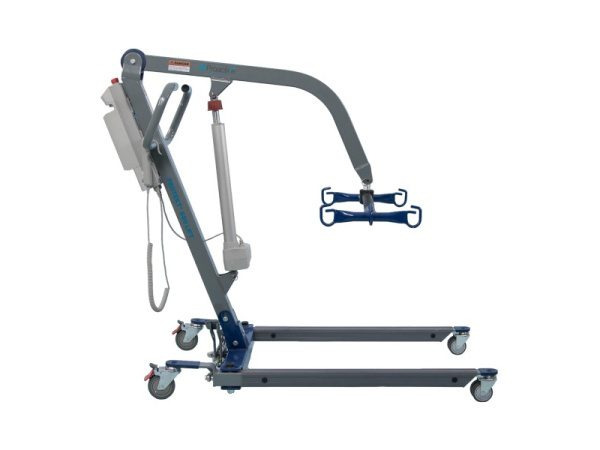

Proactive Medical Protekt Lift Full Body Electric Patient Lift (600 lbs.)

Weight capacity: 600 lbs. Model: 33600 Warranty: 3 Years (Frame), 2 Years (Electronics), Battery; 1 Year.		Product Video  Owner’s Manual  PDAC Coding Verification Letter  Individual Product Shett
The high-performance Protekt® 600 Lift is the perfect blend of form and function for safe and easy patient transfers. This electric-powered, high quality patient transfer system provides an efficient method to safely move patients, preventing patient and caregiver injuries. Designed with the facility in mind, the lift is capable of floor lifts and fits underneath most beds in the lowest position, making it the perfect solution for transferring patients in small rooms with low beds. Slings sold separately.
Product Properties
Unit Weight	126.5 bs.	Base length	47.3″
Mast Height	51.3″	Base External Width – Closed	26.4”
Base External Width – Opened	39.3”	Front Caster Height	4.7″
Lifting Height – Lowest	21.5″	Lifting Height – Highest	68.6″
Base Opened Turning Diameter	63.4″	Base Closed Turning Diameter	58.4″
Optional Digital Scale	30300	Battery	LP-TC12-BPAK
Charger (Plug)	LP-TP7C-ADP	Charging Cradle (No Plug)	LP-TBC2-CRDL
Hand Pendant	LP-TH10-PEN
