• Top speed up to 3.7 mph
• Battery range of up to 8 miles
• Collapsible back handles

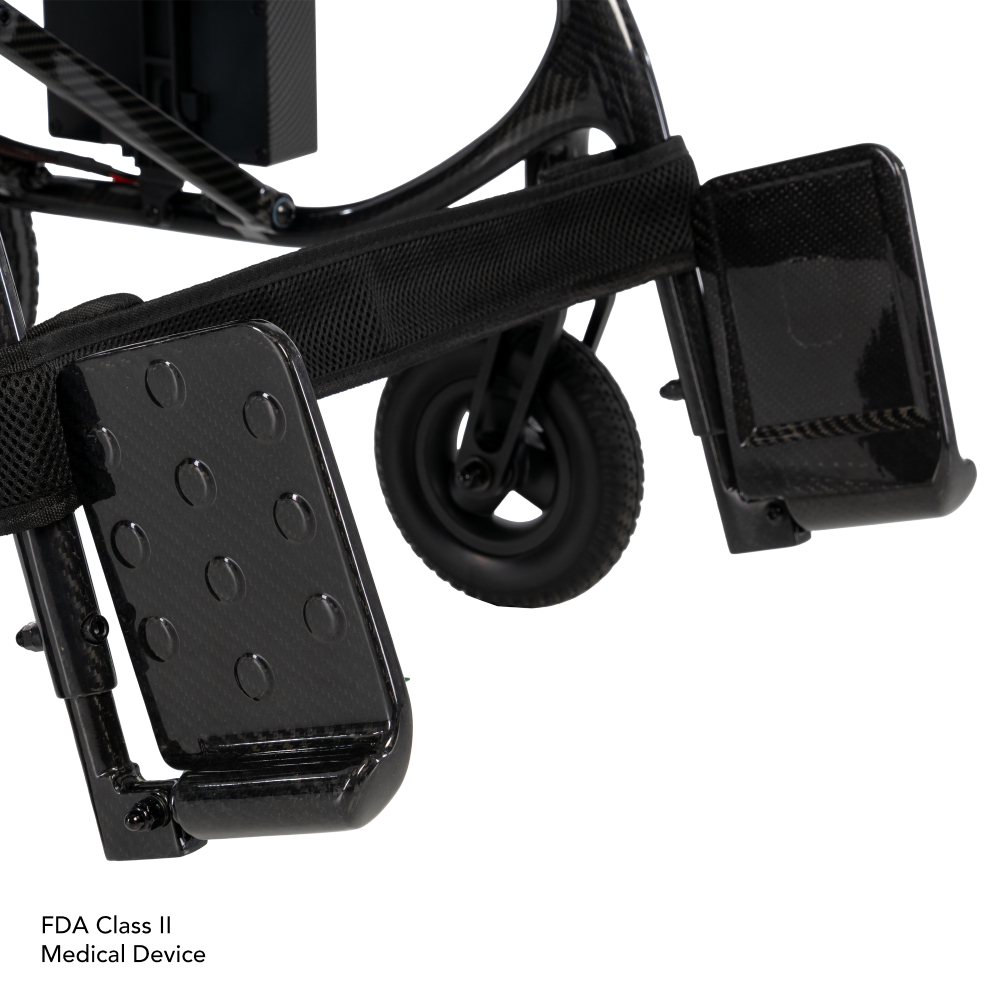

• Adjustable footrests
• Storage pocket in seat back
• Cushion and adjustable lap belt (Standard)
• Carbon fiber storage with cup holder (Standard)
• Programmable quick disconnect joystick (Standard)
• Advanced, durable, and lightweight carbon fiber frame
• Airline-compliant lithium battery (10 Ah only)
• X-frame design allows the unit to fold flat in vertical position
|
Weight capacity: 275 lbs. Model: JAZZY CARBON 27X Warranty: 5 Years (Frame), 1.1 Year Limited (Electronics, Drive Motors, Battery) |
|||
|---|---|---|---|
|

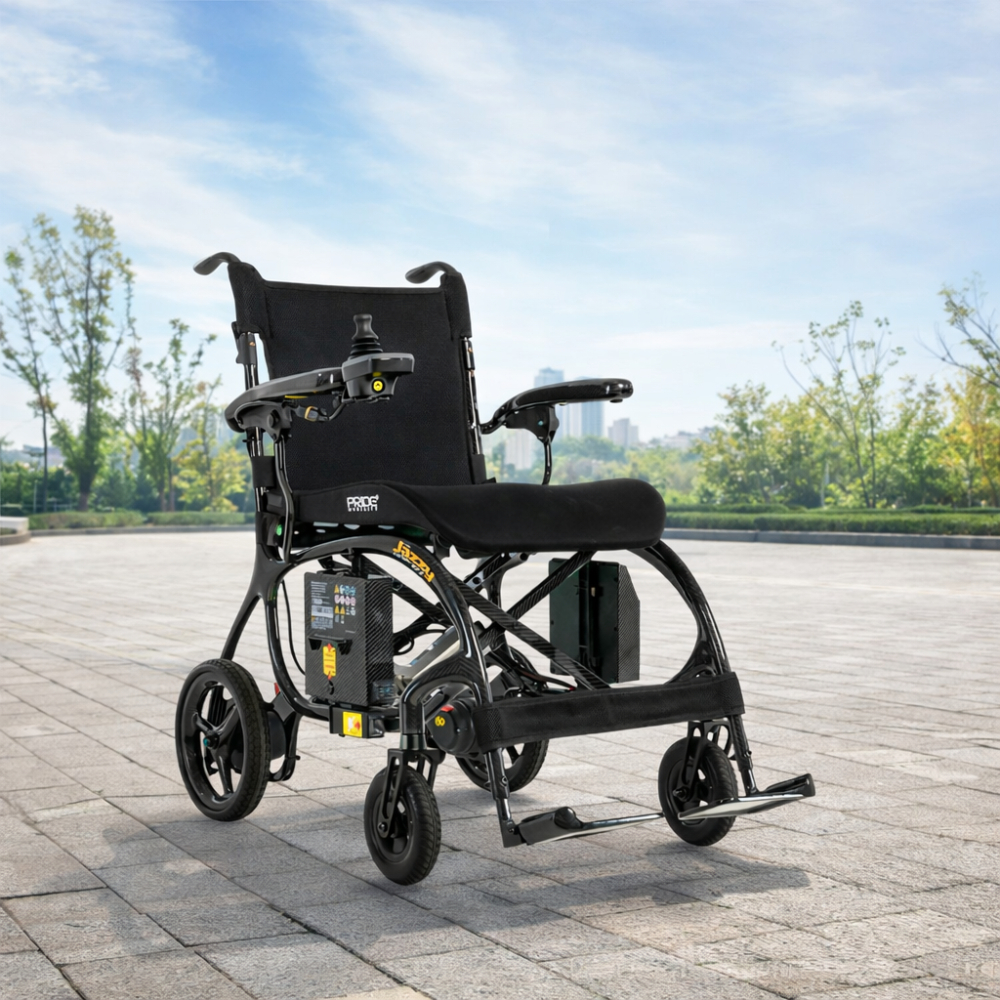

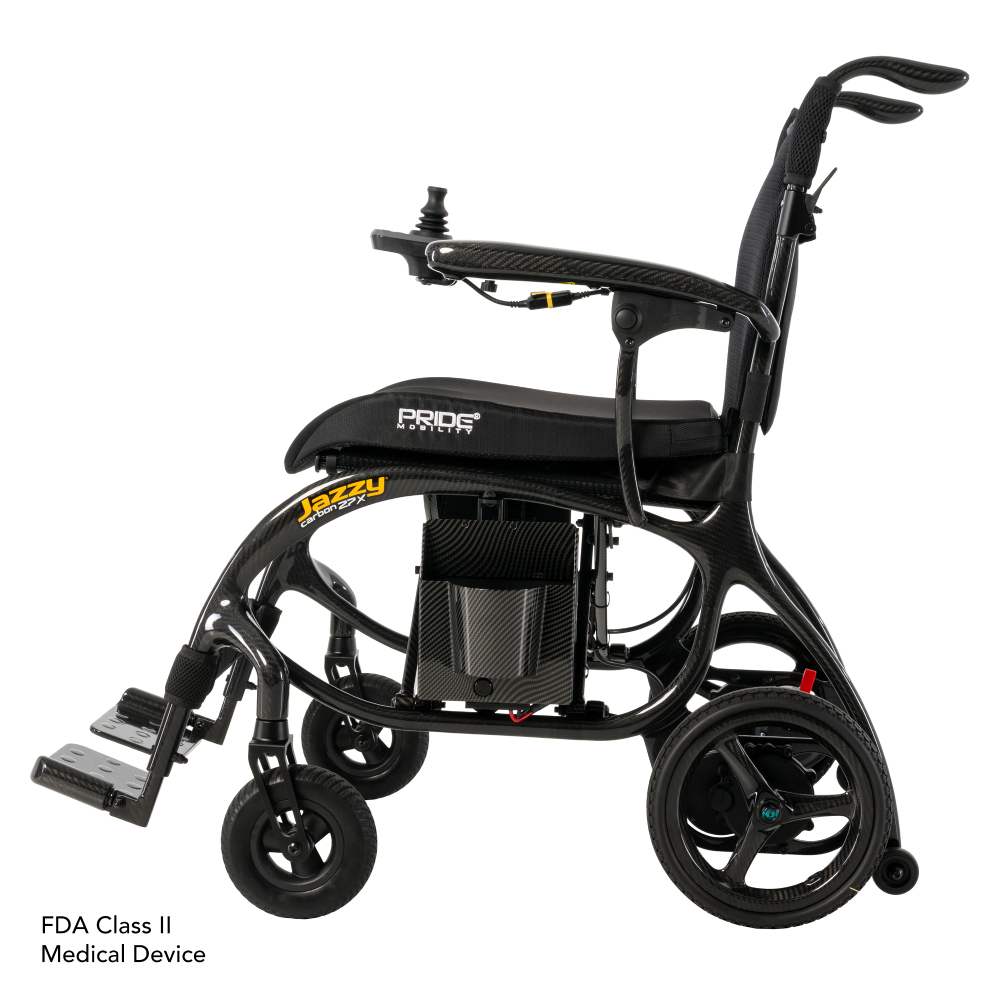

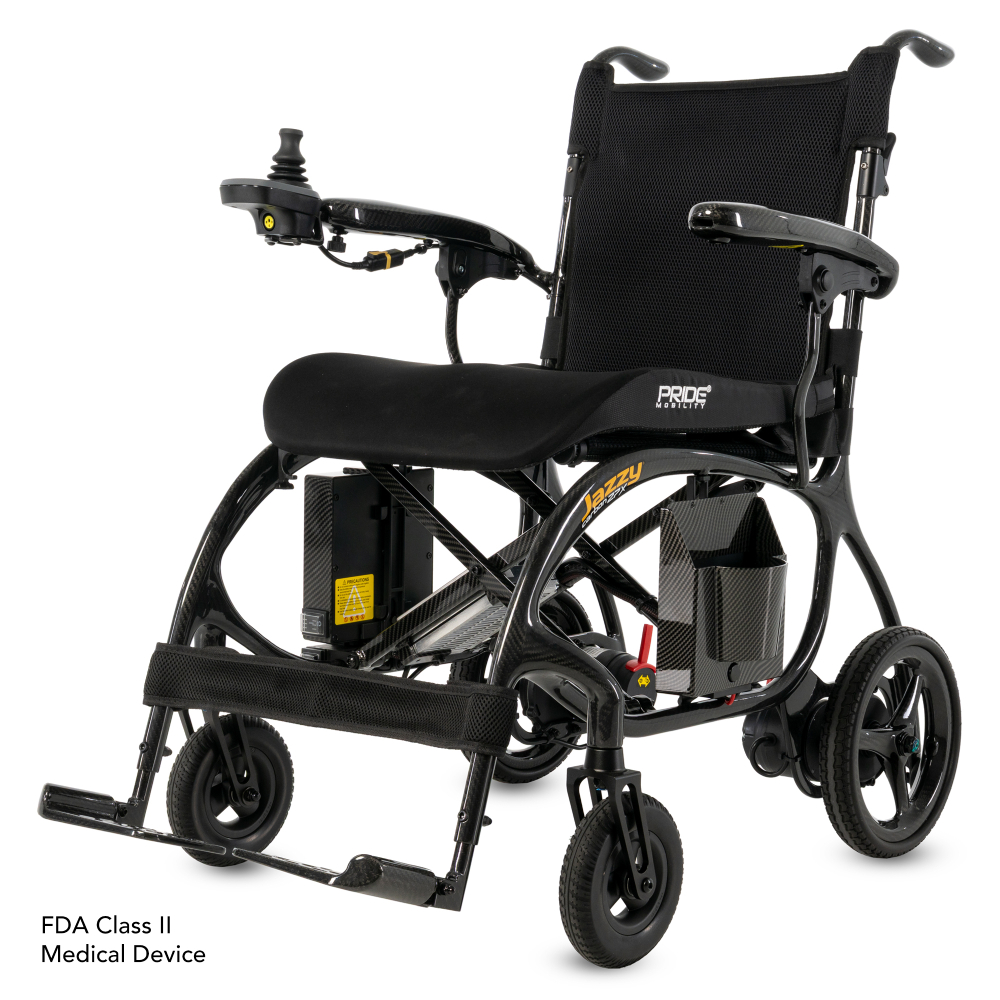

The Jazzy Carbon 27X is an ultra-lightweight power wheelchair that folds vertically in seconds thanks to its innovative X-frame design. Weighing just 27.5 lbs. without the battery, its super-strong carbon fiber construction delivers exceptional durability without sacrificing portability. Designed for everyday convenience, it features flip-up lightweight carbon fiber arms, collapsible back handles, and adjustable footrests for a comfortable, user-friendly ride. FDA Class II Medical Device* |
|||
| Product Properties | |||
| Weight capacity | 275 lbs. | Ground clearance | 3″ |
| Turning radius | 35.4″ | Overall dimensions (L × W) | 41″ × 23″ |
| Drive wheels | 10″ solid | Color | Black |
| Total weight w/o batteries | 27.5 lbs. | Suspension | Full Front and Rear Suspension |
| Standard seating | Cushioned back with a removable seat cushion | Battery charger | 3.5 amp |
| Braking system | Regenerative and electromechanical | Per-charge ranges | Up to 8 miles |
| Battery | 10AH lithium-ion | Battery weight | 3.5 lbs. |
| Drive system | 24V/150W motors | Maximum speed | Up to 3.7 mph |
| Front Wheels | 7″ | ||

|
Available Accessories
|
||||
|---|---|---|---|---|
 |
 |
 |
 |
|
| Mesh Cup Holder | Battery Bag | Additional 10Ah
Airline-Compliant Battery |
Stealth Simplicity
Cushion, 18″ W x 18″ D |
|
