Weight capacity: 300 lbs. |
|||
---|---|---|---|

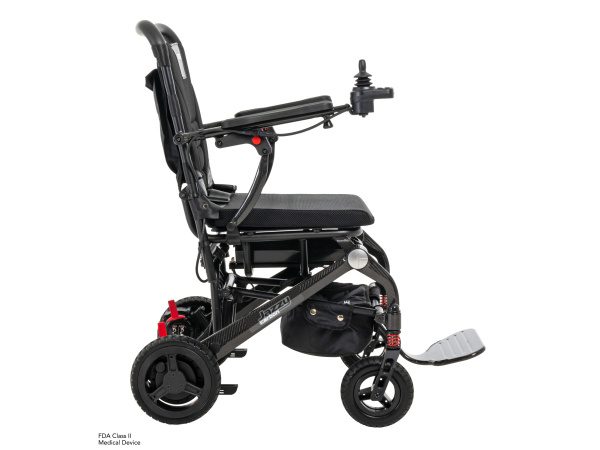

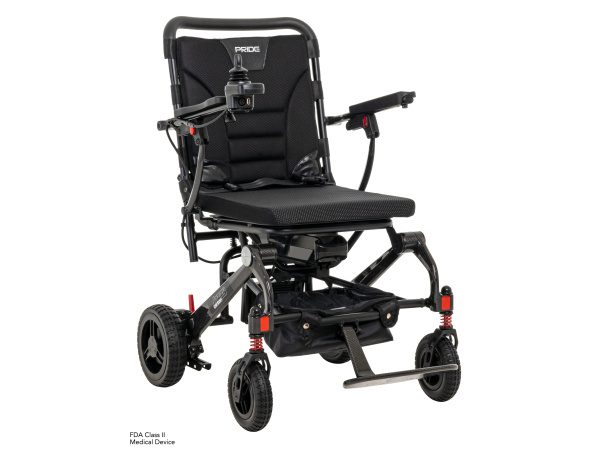

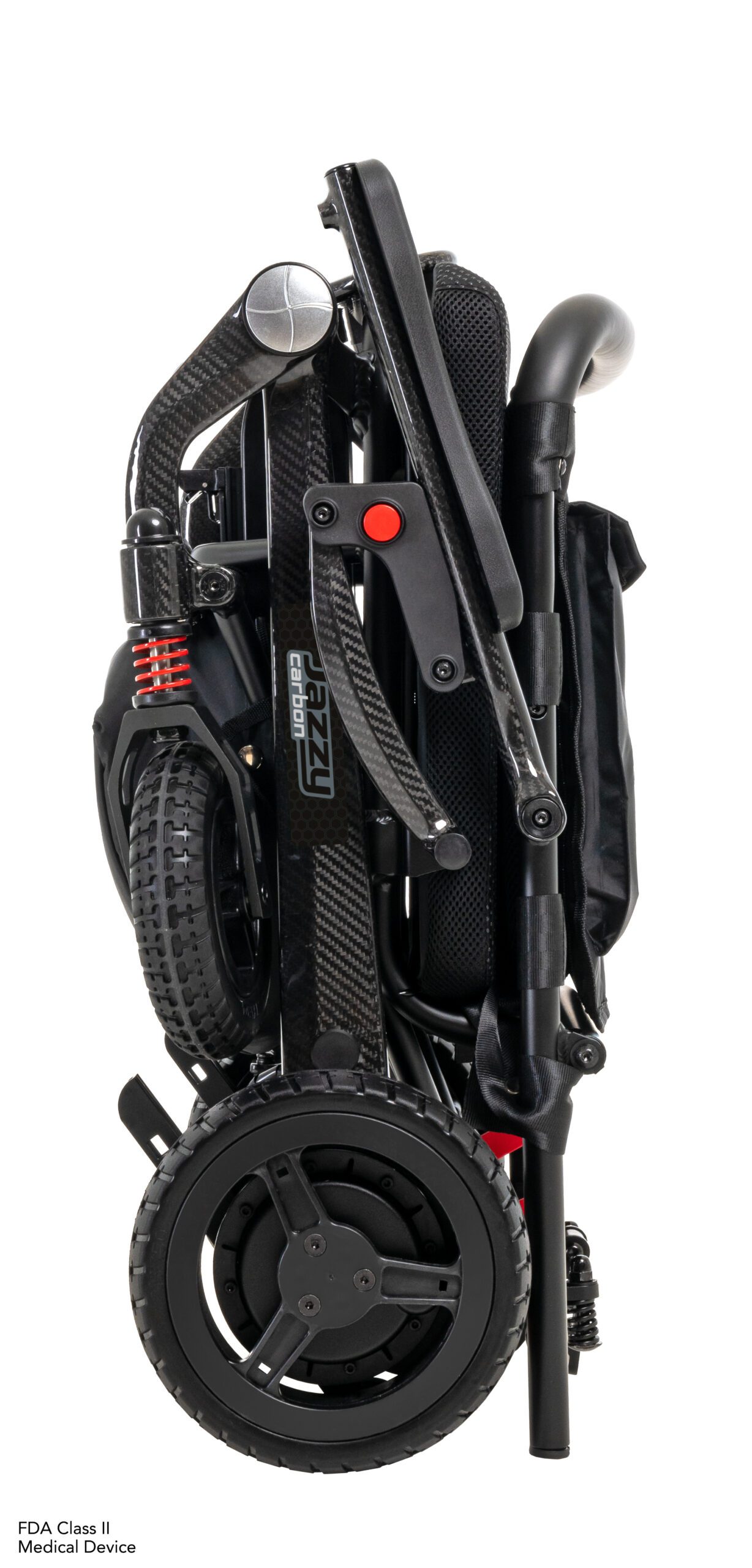

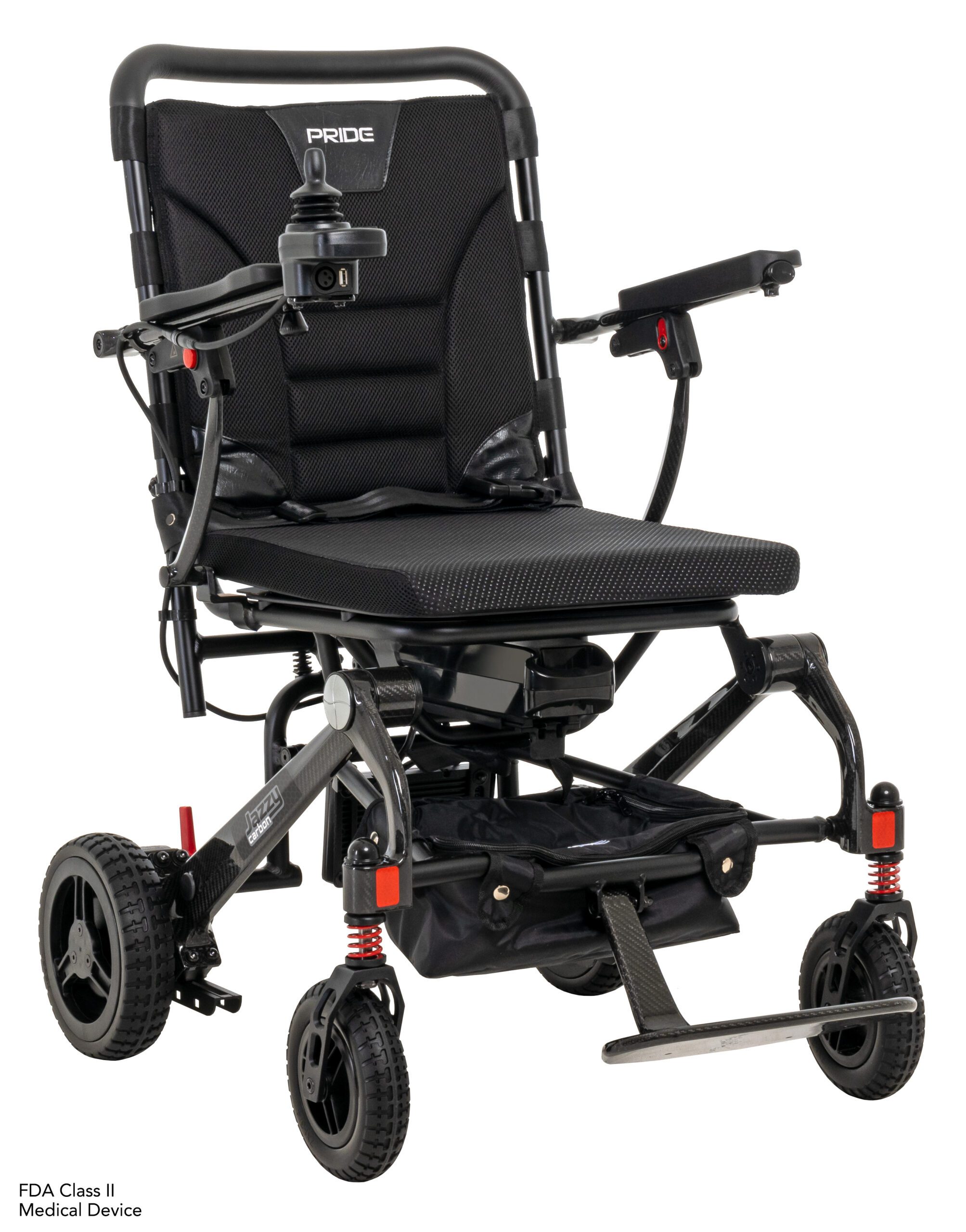

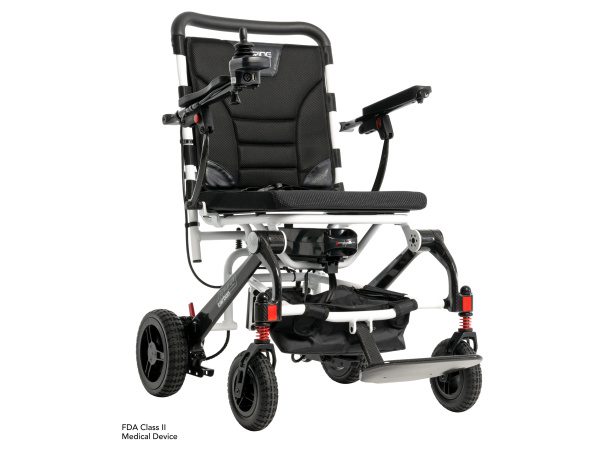

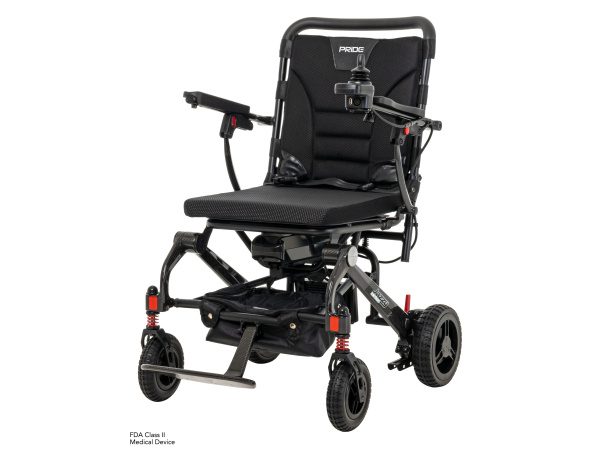

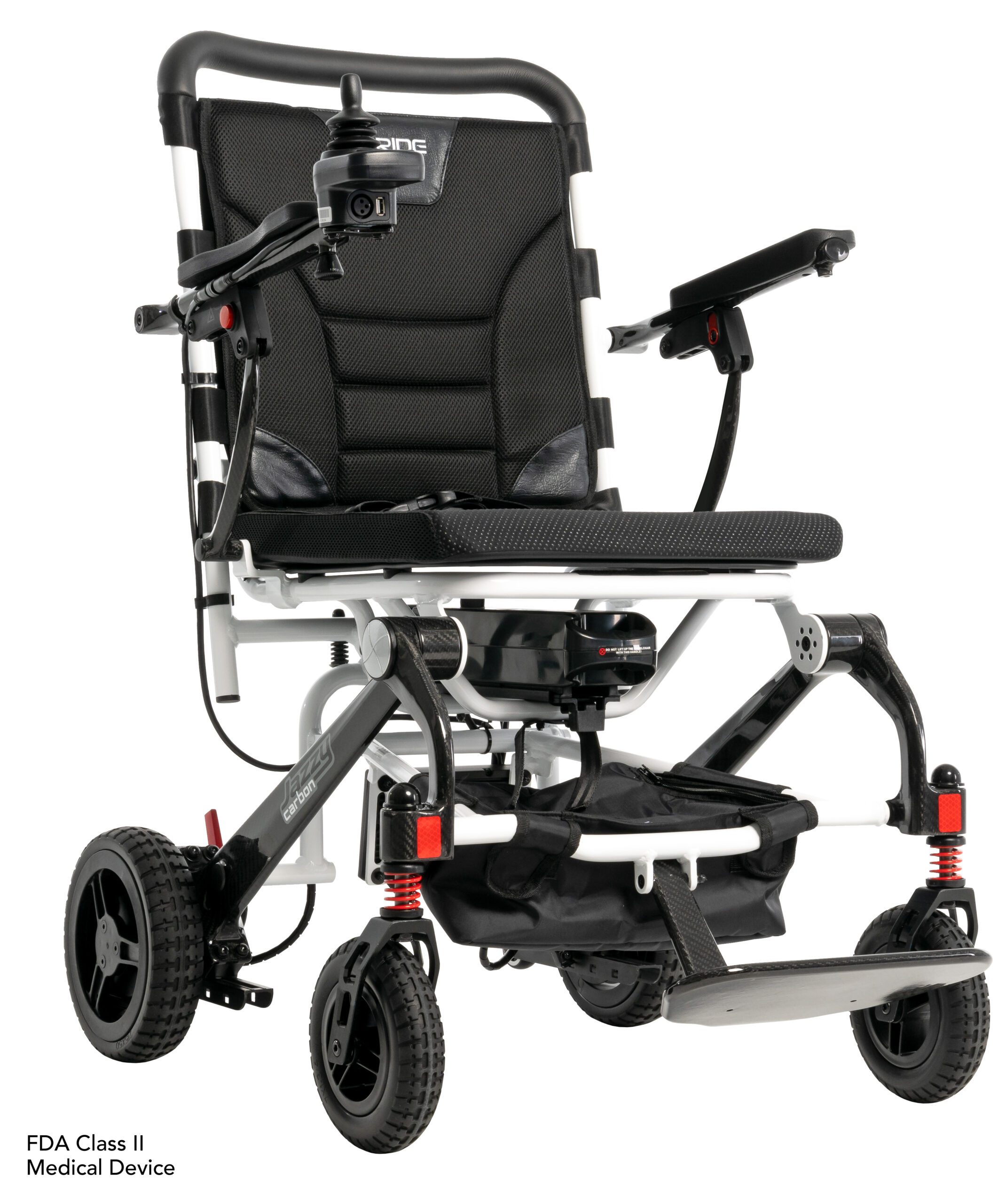

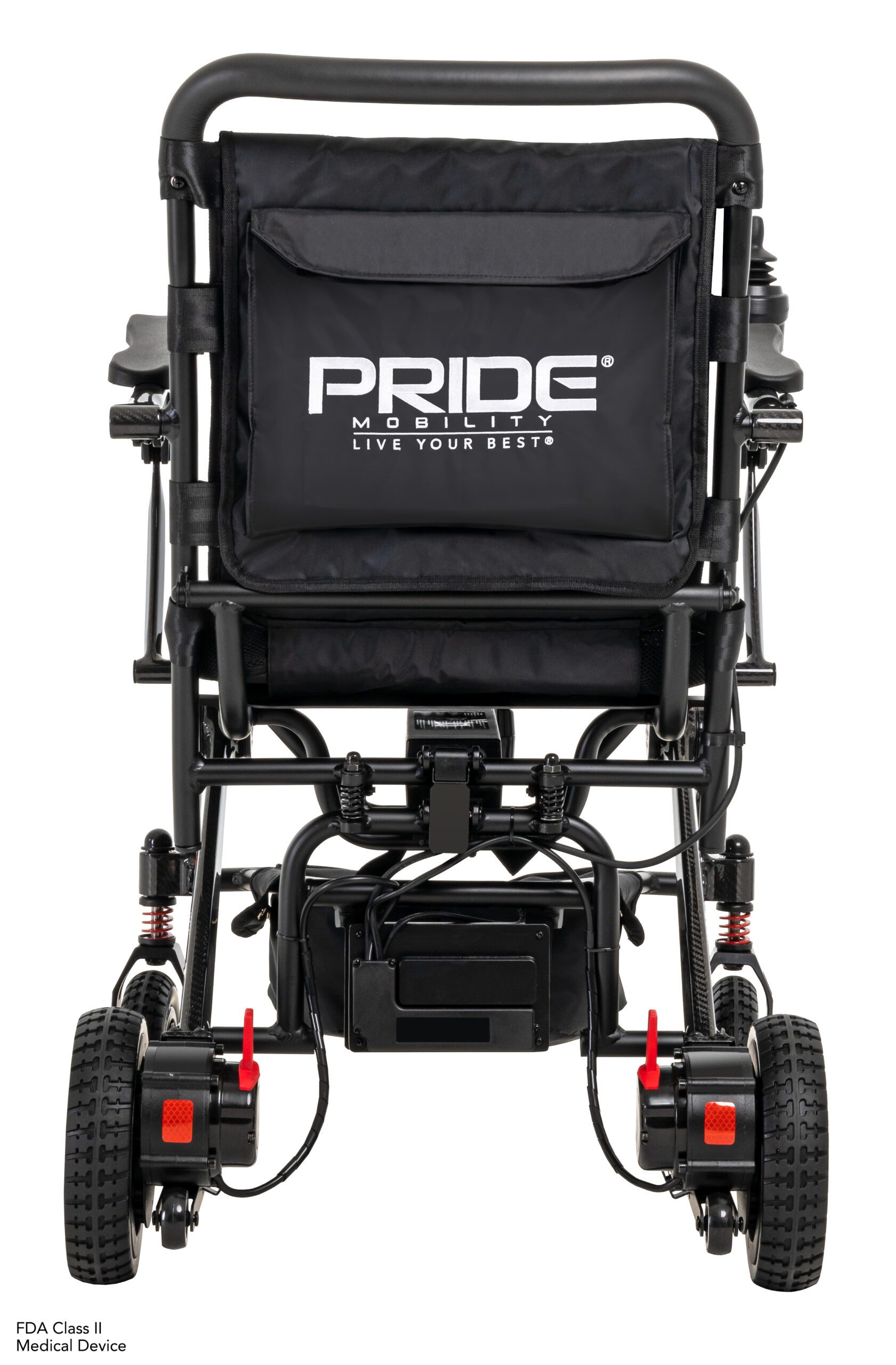

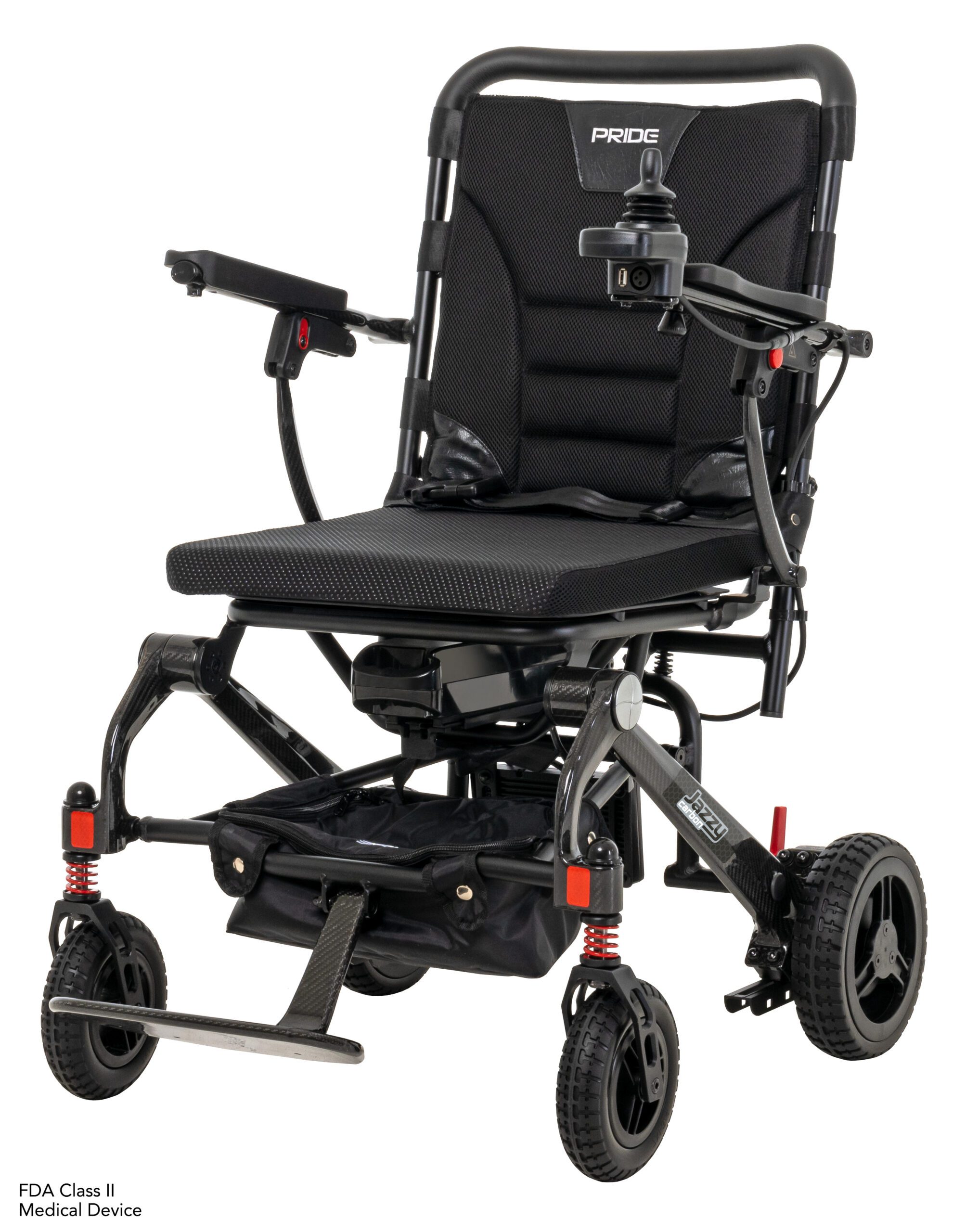

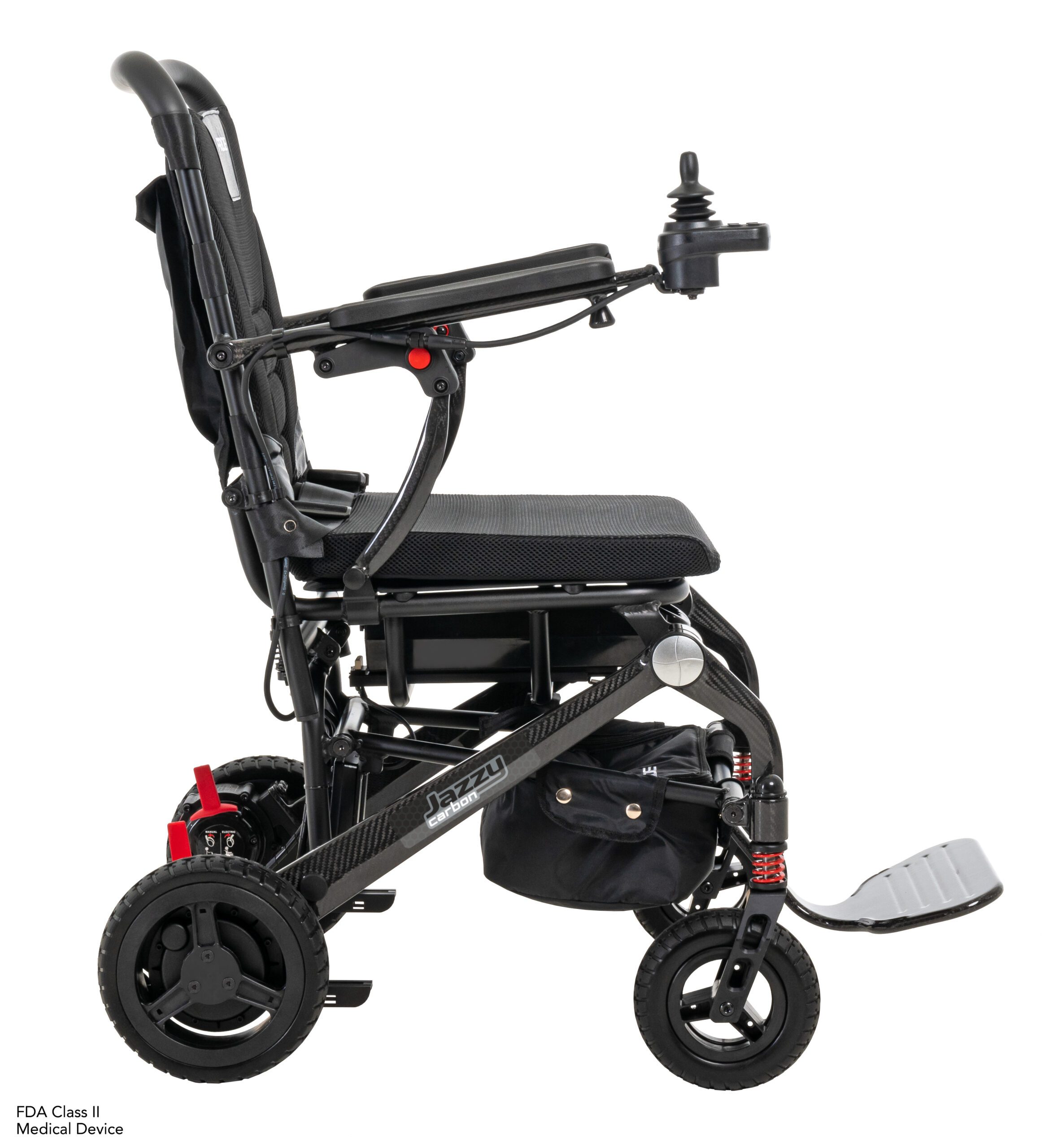

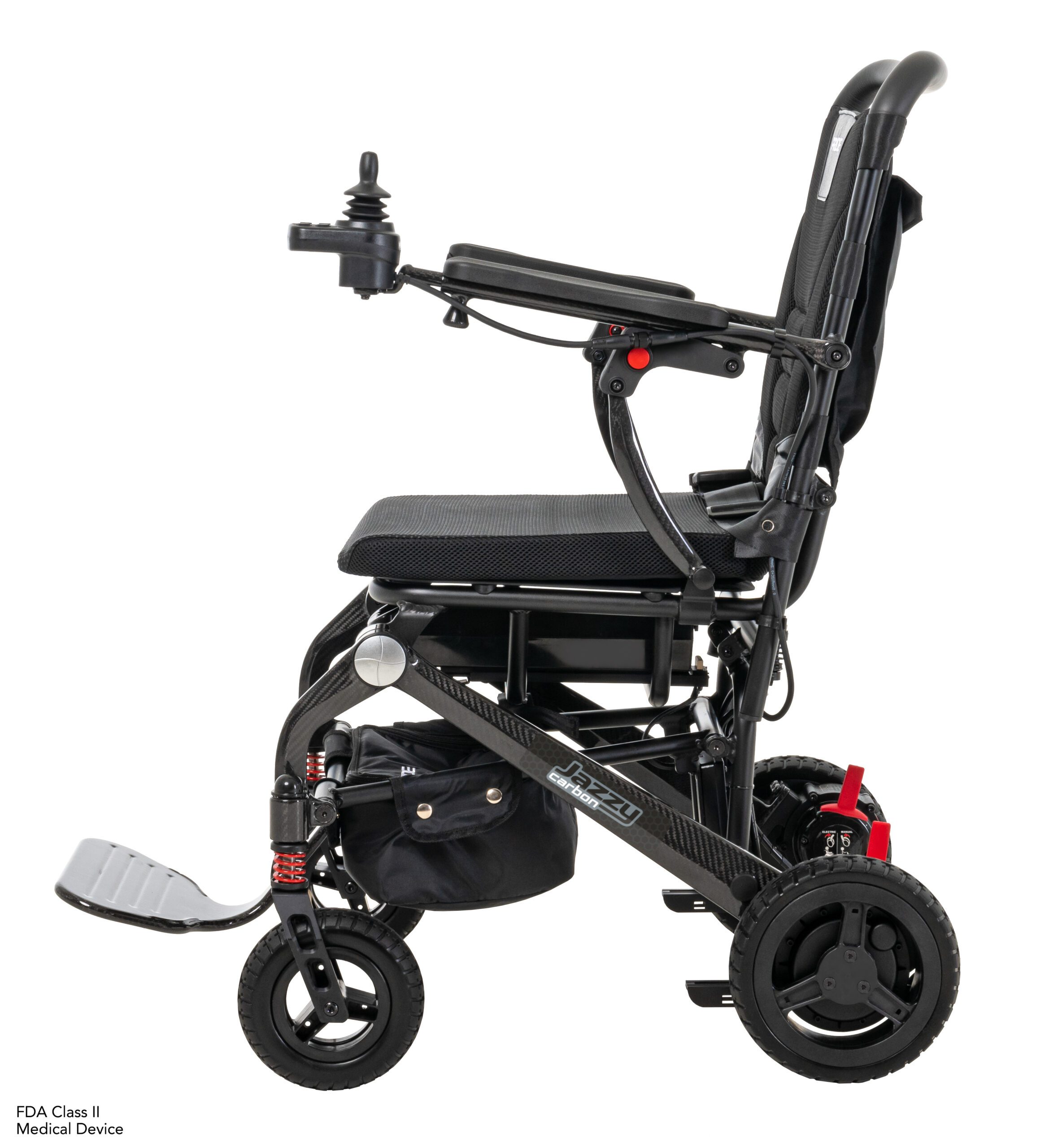

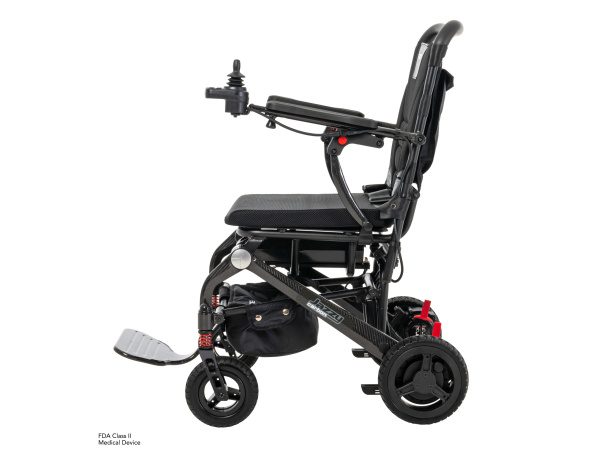

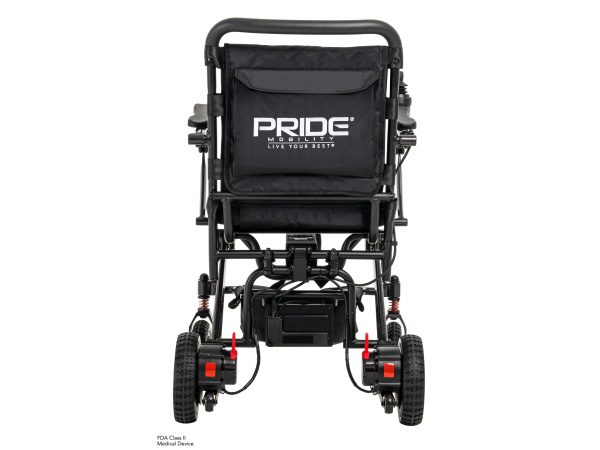

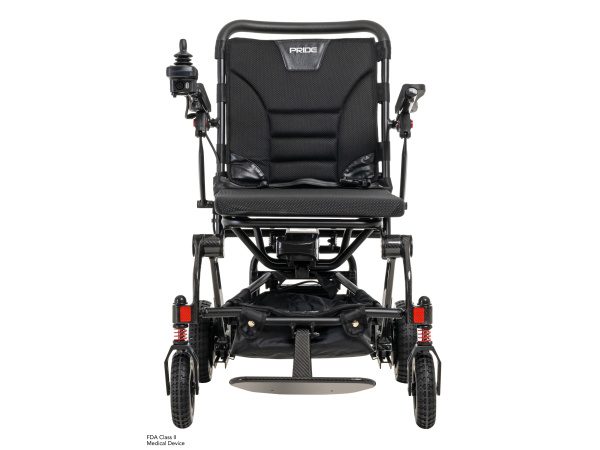

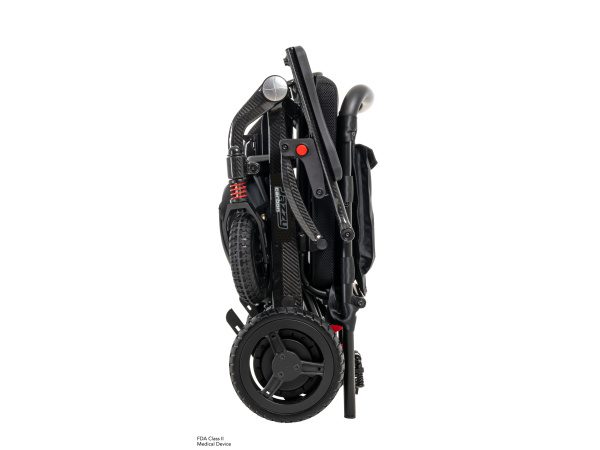

You know Jazzy for its industry-leading performance and quality. Now let’s talk about portability. The Jazzy Carbon uses ultralight but exceptionally strong carbon fiber technology for its frame and a lightweight, reliable lithium-ion battery. Travelers keep their Jazzy Carbon charged and standing by for spontaneous jet-setting adventures. They know it breezes through airport security, easily stows on the plane and gives them the mobility support they need to make the most of their travels. Weighing in at a stunning 43.6 pounds, the Jazzy Carbon still provides top speeds up to 3.7 mph with a weight capacity of 300 pounds. FDA Class II Medical Device* |
|||
Product Properties | |||
Maximum speed | Up to 3.7 mph | Ground clearance | 2″ |
Turning radius | 24″ | Overall dimensions (L × W) | 37″ × 24″ |
Drive wheels | 8.5″ solid | Casters | (none) |
Total weight w/o batteries | 39.6 lbs. | Color | Gray |
Standard seating | Black foam | Seating dimensions | 17″ × 17″ |
Seat-to-ground height | 20.25″ (with standard cushion) 18.75″ (without cushion) |
Seat-to-foot height | 14.5″ (no adjustment) |
Braking system | Regenerative and electromechanical | Suspension | Front |
Battery | 24V 12AH (288WH) lithium-ion | Battery charger | 2 amp, lithium-ion off-board |
Drive system | 24V/250W brushless motors | Per-charge ranges | Up to 9.3 miles |
Total weight w/o batteries | 53 lbs. | Battery weight | 4 lbs. |
Available Accessories | |
---|---|
All accessories attached | Attendant Control Bracket |
|
|
Headrest Kit | |
Cup Holder | |
|
