Weight capacity: 800 lbs. (500 lbs. with Top Lip Extension) |
|||||
|---|---|---|---|---|---|
|
The Suitcase Trifold AS Ramp comes in large portable ramp in sizes ranging from 5 to 10 feet in length. Ideal for raised landings, steps, or larger vehicles. The portable tri-fold ramp features a unique 3-fold design, an applied slip-resistant surface, self-adjusting bottom transition plates, for easy conversion from ramp to ground, and can be separated into two individual sections. This portable ramp is also compatible with the Top Lip Extension (TLE) compatible. Features an applied, slip-resistant surface. 800-pound weight capacity. |
|||||
| Available Models Properties | |||||
| Model | Usable Size (L × W) |
Folded Size (L × W × H) |
Product Weight | Supported With | |
| SUITCASE TFAS05 | 5′ × 29.5″ | 30.75″×15″×11.5″ | 32 lbs. (16 lbs. Each) |
1 – 2 Steps, Curbs, Some Minivans | |
| SUITCASE TFAS06 | 6′ × 29.5″ | 36.75″×15″×11.5″ | 38 lbs. (19 lbs. Each) |
1 – 3 Steps, Some Minivans, SUVs | |
| SUITCASE TFAS07 | 7′ × 29.5″ | 42.75″×15″×11.5″ | 44 lbs. (22 lbs. Each) |
1 – 3 Steps, Some Minivans, SUVs | |
| SUITCASE TFAS08 | 8′ × 29.5″ | 48.75″×15″×11.5″ | 50 lbs. (25 lbs. Each) |
2 – 3 Steps, Some Minivans, SUVs | |
| SUITCASE TFAS10 | 10′ × 29.5″ | 60.75″×15″×11.5″ | 60 lbs. (30 lbs. Each) |
2 – 4 Steps, Some Minivans, SUVs | |
| *** Please call us at (800) 437-3677 for pricing on ramps over 6 feet. *** | |||||
|
Weight capacity: 500 lbs. |
|||
|---|---|---|---|
|
Extend the usefulness of your SUITCASE Advantage Series portable wheelchair ramp with the Top Lip Extension (TLE). This optional extension increases the standard 3″ lip to become 9″. This extension allows the portable ramp to clear the bumpers of vans and SUVs. Features an extruded slip-resistant surface and is made of aluminum for maximum strength. Sold as a pair. |
|||
| Product Properties | |||
| Dimensions (H × L × H) | 2.25″ × 8.5″ × 13.75″ | Product weight | 5 lbs. (per set) |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

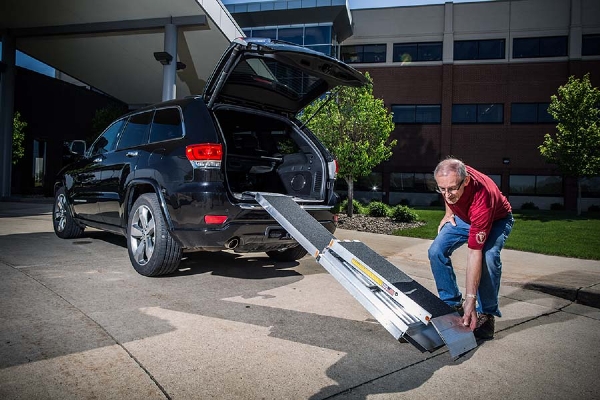

| Actual Product | Product Usage Comparison |
